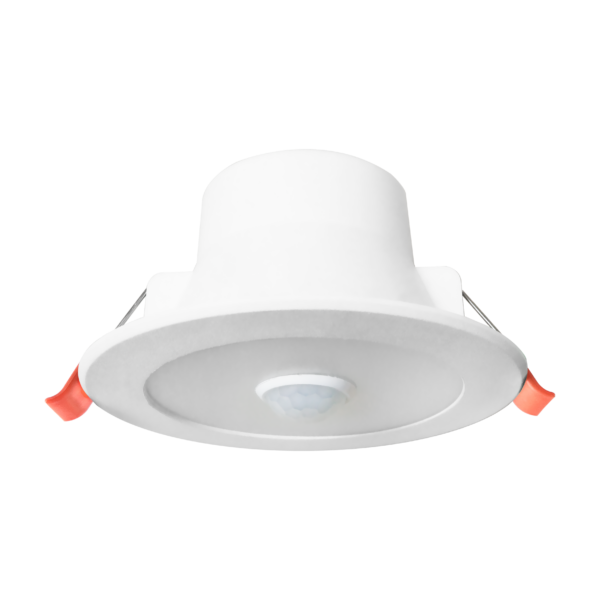

Recessed LED Downlight With Built-In PIR Sensor
- Product Data
- More Information
- DATA SHEET DOWNLOAD
Additional information
| Luminaire efficacy | 100/107/105 |
|---|---|
| Beam Angle | 100 |
| Box Qty | 1 |
| Compliance | LM80, RCM |
| CRI | 80 |
| Dimmable | Non-Dimmable |
| EAN | 9340994031774 |

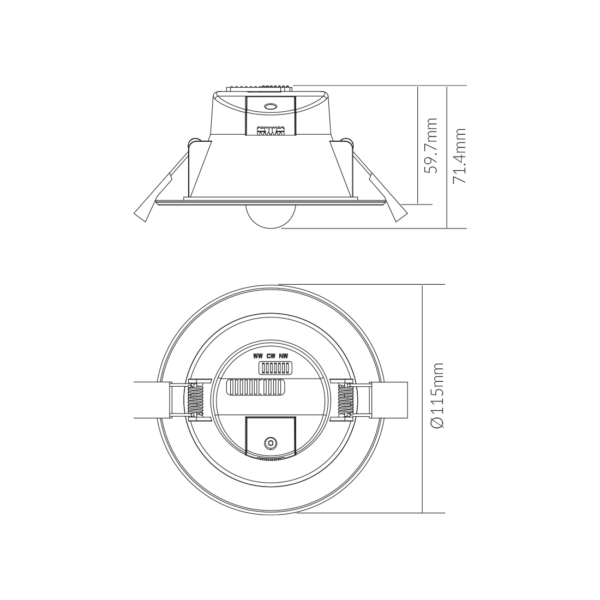

| Height | 71.4 |
| Input voltage | 220-240V AC 50Hz |
| IP rating | 44 |
| Lamp Type | LED |
| LED source | SMD |
| Lifespan | 30000 |
| Lumen output | 800/860/840 |
| Trim colour | White |
| Warranty | 3 |
| Wattage | 8 |
| Wiring method | Flex & Plug |
| Working temperature | -20°C ~ 40°C |
| Mounting Type | Recessed |
| Cut Out | 90 – 100 |
| Color Temperature | 3CCT |
| Kelvin | 3000K/4000K/5000K |
Description
The 188 Series LED Downlight with integrated PIR sensor delivers smart, motion-activated lighting—ideal for improving safety, convenience and energy efficiency in residential and commercial spaces. Its compact 8W design offers low power consumption without sacrificing brightness, while the 3CCT switchable function (3000K, 4000K, 5300K) allows easy adjustment to suit different environments.
Rated IP44, it’s suitable for damp areas such as bathrooms, laundries and covered outdoor spaces. The non-dimmable design ensures consistent, flicker-free performance, while the sleek profile and simple installation make it perfect for both new builds and retrofits.
