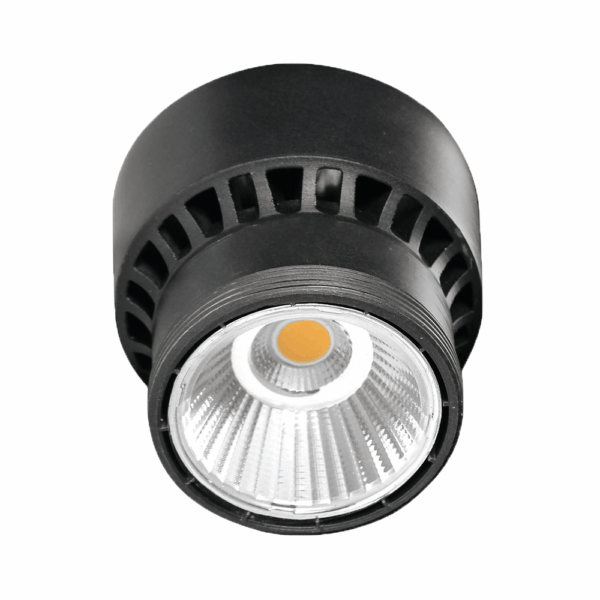

LED ENGINE 12W 60D DIM 3K/4K SWITCHABLE CRI90 – MUST ADD TRIM
- Product Data
- More Information
- DATA SHEET DOWNLOAD
Additional information
| Luminaire efficacy | 96 |
|---|---|
| Beam Angle | 60 |
| Box Qty | 1 |
| Compliance | SAA |
| CRI | 90 |
| Dimmable | Dimmable |
| EAN | 9340994031934 |

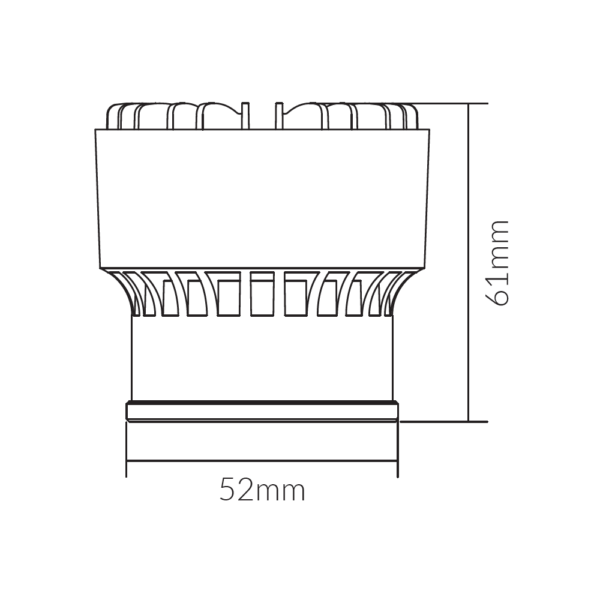

| Height | 61 |
| Input voltage | 220-240V/ 50Hz |
| IP rating | 20 |
| Lamp Type | LED |
| LED source | COB |
| Lumen output | 1150 |
| Warranty | 3 |
| Wattage | 12 |
| Weatherproof | Indoor Use Only |
| Width | 52 |
| Wiring method | Flex & Plug |
| Working temperature | -20°C ~ 40°C |
| Mounting Type | Recessed |
| Color Temperature | 2CCT |
| Kelvin | 3000K/4000K |
Description
This 12W 3000K and 4000K CCT Switchable Engine is part of our 134 LED Modular Downlight Series – our most versatile yet! Select your color temperature – 3k or 4K, then choose your Trim and build your own downlight! With 7 trim options to choose from, including, Fixed White Round 70mm cut-out, Gimbal White Round 90mm cut-out, Square with 90mm cut-out, Fixed Deep Baffle White 90mm cut-out, Fixed Deep Baffle White or Black 76mm cut-out, Tilt Baffle in White or Black 90mm cut-out, and Twin Square White 175x85mm cutout. This engine comes equipped with color switchable COB LED Chips, is dimmable on most trailing edge dimmers and includes a 3 year warranty.
